HFeng Cheap Access Control System Kit Set RFID Access Control Keypad Controller + 180KG/350lbs Electric Magnetic Lock + Power Supply + 10pcs RFID Keychains Cards for Door Entry System

Amazon.com Price: $53.99 (as of 27/06/2024 00:18 PST- Details)


Product Specs

Entry Management Keypad
Materials: top quality plastic
Consumer capability: 1000 customers
Working frequency: 125KHz
Card studying sort: EM card
Card studying distance: 0-5CM
Identification technique: RFID card, password, card + password
Door bell perform: assist
Unlocking time: 5 seconds
Working voltage: DC 12V ± 10%
Working energy provide: <100mA
Dimension: 113*70*20mm

180KG Magnetic lock
Materials: Aluminum alloy shell + iron plate
Holding drive: 180KG/350lbs
Working Voltage: DC12V
Working Present: 380-430mA
Appropriate for door: metallic, picket, glass door
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius diploma
Working mode: locked when energy on, unlocked when energy off
Waterproof: Sure. May be set up exterior

Energy Provide
Materials: stell
AC enter: Commonplace AC100V-260V / 50-60HZ
DC output: DC12V/ 3 A
Time delay: 0-15 seconds adjustable.
Dimension: 140X67X33mm( L/W/H )

Door Exit Button
Materials: Exhausting Plastic
Most Energy Score: 36V DC 3A—5A output
Assist each NC Mode (Fail Secure Mode) & NO Mode (Fail Safe Mode)
Dimension: 86X86MM

10* RFID Keyfobs
Materials: ABS
Working frequency: 125kHz
Detection vary: 0-10cm
Every card pre programmed and has a singular id quantity on it.

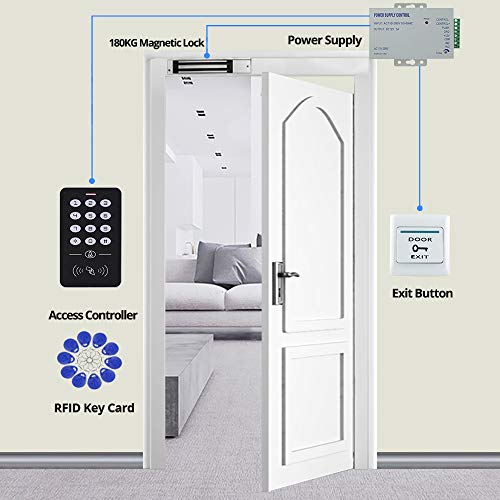

Package deal Together with
1x RFID Entry Management Keypad
1x 180KG Electrical Magnetic Lock
1x Energy provide
1x Exit button
10x RFID blue keyfobs

1) Working with DC12V system, very simple to put in. Do not want to connect with laptop. You possibly can program the RFID playing cards or password on the gadget immediately.
2) Assist 1000 consumer capability. Assist RFID Card, password, RFID card + password to open the door.
3) Made of top of the range. Has a door bell button, may be linked to a DC12V door bell. Assist 0-15 seconds time delay adjustable.
4) Electrical magnetic lock, holding drive 180kg/350lbs. The door will probably be locked when energy on, unlocked when energy off. Very appropriate for picket door, metallic door, glass door.
5) Package deal together with entry management keypad + 180KG Electrical magnetic lock + energy provide+ door exit button +10pcs Keyfobs.
